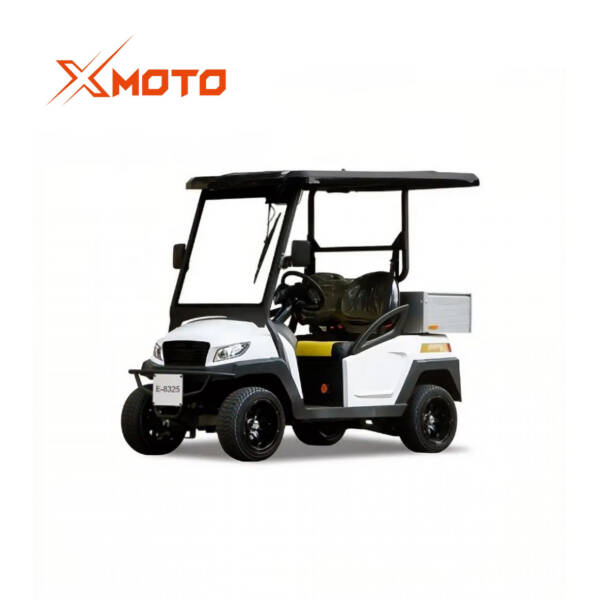

M1S2 Short Cargo Utility Buggy
The M1S2 Short Cargo is a compact electric utility buggy that combines comfortable two-person transportation with a practical rear cargo area. Its compact turning radius and long operating range make it ideal for golf courses, hotels, residential areas, factories and facility maintenance operations.
| SPECIFICATION | |
|---|---|
| Dimension | 3200 * 1200 * 1800 MM |
| Wheelbase | 1670 MM |
| Ground Clearance | 150MM |
| F/R Track | 860/970 MM |
| Passenger Capacity | 2 |
| Climbing Capacity | 30% |
| Max. Forward Speed | 35 KM/H |
| Endurance Mileage | 80-100KM |
| Chassis | Aluminum Chassis |
| Net Weight | 400KG |
| Min. Turning Radius | 2.9M |
| STEERING & SUSPENSION | |
| Steering System | Self-adjusting Rack and Pinion Steering System, with Automatic Compensation Function |
| Brake System | Rear Wheel Mechanical Brake |
| Accelerator | Holzer Type, Stepless Speed Change |
| Front Suspension | Mcpherson Independent Spring Suspension |
| Rear Suspension | Coil Spring Hydraulic Shock Absorber |
| Driving Model | Rear Axle Two Stage Acceleration, Motor Direct Driving |
| Wheel & Tyre | Aluminum Wheel & USA Carlisle 18*8.5-8.6 layers |
| BODY & FRAME | |
| Frame & Chassis | Steel Alloy Framework |
| Body | PP Engineering Plastic Front & Rear Body Cover, Injected |
| Roof | Glass Fiber Reinforced Plastic |
| Windshield | Organic Glass (PMMA), One-piece or Two pieces |
| Roof Supports | Imbedding Black Coating Steel Tube in the Plastic Support |
| Cushion | Reborn Sponge with Artificial Leather & Plastic Bottom Cover |
| Backrest | Reborn Sponge with Artificial Leather & Plastic Cover |
| Armrest | Plastic |
| Floor Mat | Anti-skidding Rubber |
| Rear Basket | Plastic |
| Golf Bag Holder | Plastic Support with Nylon Strap |
| Dashboard | Black Plastic Material, Battery Power Indicator, Ignition Key on It |
| Beverage Holders | 4 pcs Cups Holders, 2 pcs for Each Side |
| Side Trim | Plastic, Black |
| Score Card Holder | On the Steering Wheel |
