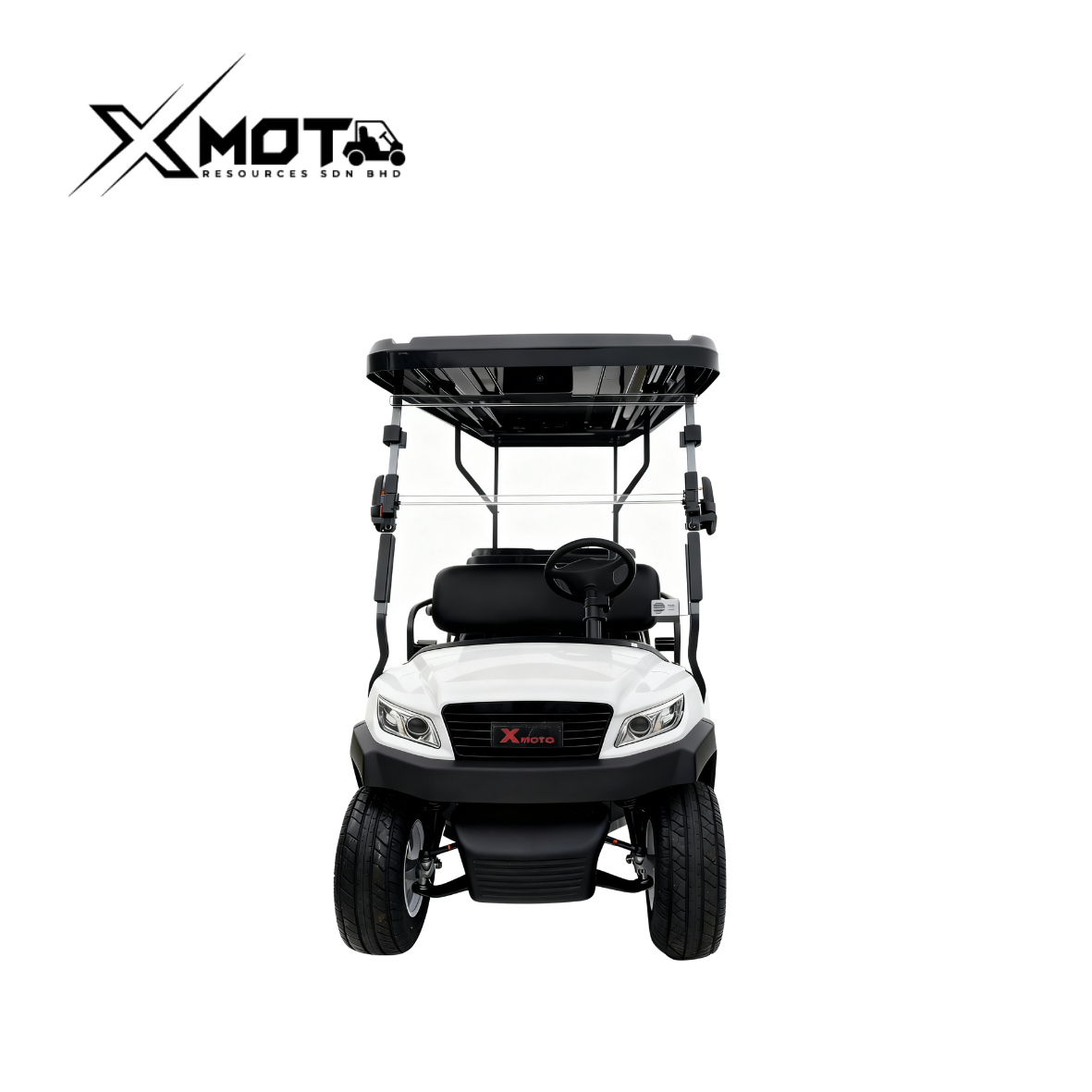

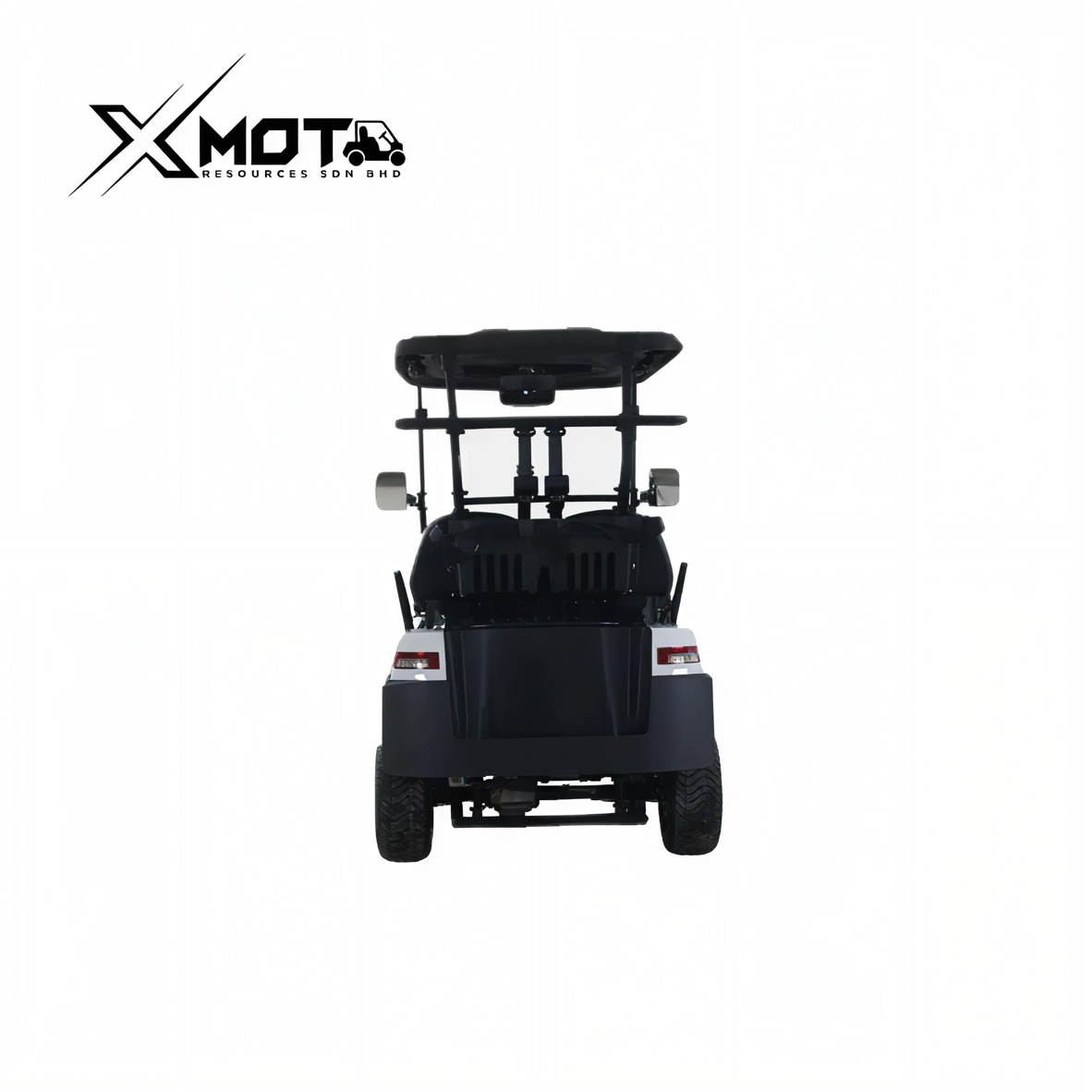

M1S4
| SPECIFICATION | |
| Dimension | 3200 * 1200 * 1900 MM |
| F/R Track | 860 / 970MM |
| Wheelbase | 2490MM |
| Ground Clearance | 114MM |
| Min. Turning Radius | 3.9M |
| Net Weight | 630KG |
| Pay Load | 360KG |
| Climbing Capacity (FULL LOAD) | 30% |
| Chassis | Aluminium Chassis |
| Body Cover | PP Engineering Plastic |
| Max. Forward Speed | 24 KM/H |
| Range | 60-80KM |
| CONFIGURATION | |
| Motor | ADC Separately Excited Motor 48V 3.7KW |
| Controller | Curtis Controller 48V 275A |
| Batteries | T-875 6*8V |
| Charger | 48V 17A Intelligent Offboard Charger |
| CHASSIS CONFIGURATION | |
| Transaxle | Italy Graziano Axle |
| Brake System | Rear Self-adjusting drum brake |
| Steering System | Dual Self-adjusting Rack & Pinion |
| F/R Suspension | Mcpherson independent spring suspension |
| Tyre | 10 inches |
