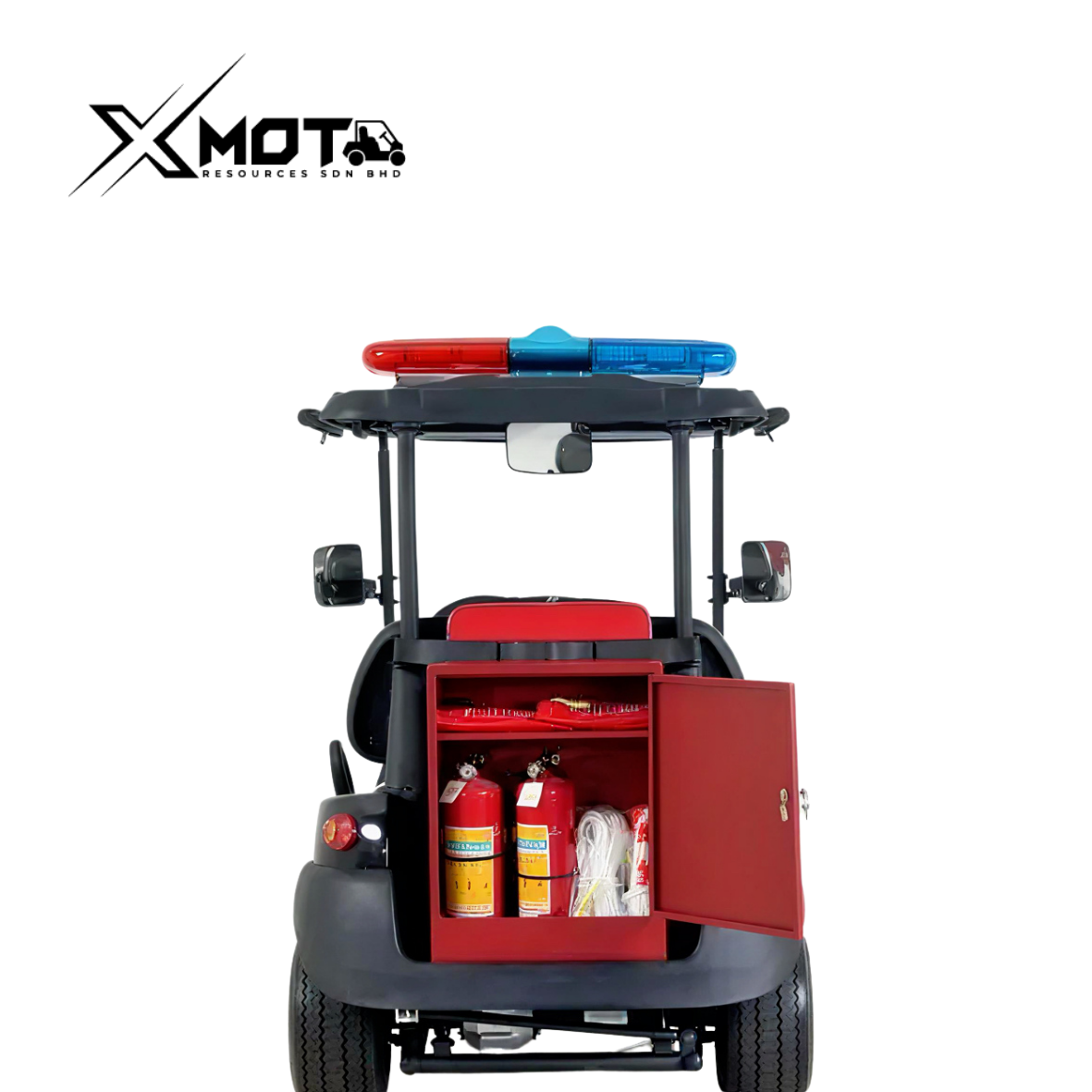

M1S2 with Extinguisher Fire Truck

DIMENSIONS
Overall Dimensions (LxWxH) 2641x1219x1727mm
Ground Clearance 114mm
Wheelbase 1670mm
Front Wheel Tread (mm) 860mm
Rear Wheel Tread (mm) 970mm
SPECIFICATION
Battery 6*8V 275AH T-875
Power of Motor 48V 3700W
Controller American Curtis Electronics Controller
Accelerator Adjustable Inductive Accelerator Continuously Variable Speed System
Transaxle Italy Graziano Axle
Charger Intelligent Onboard Charger
CHASSIS CONFIGURATION
Front-Suspension Independent Spring Front Suspension
Rear-Suspension Spring Hydraulic Shock Absorbers
Steering Dual Self Adjusting "Rack & Pinion" Steering
Brakes Rear Wheel Mechanical Drum Brake and Regenration Brake
PERFORMANCE
Max. Speed 25km/h Chassis Aluminum
Max. Travel Distance 80-100km Wheelbase 1670mm
Slope Climbing Capacity 30% Front Wheel Tread 860mm
Brake Range ≤3m Rear Wheel Tread 970mm
Max. Noise <50dB Tires 205/50-10
Carrying Capacity 600kg Dimension 2700*1200*1900mm
Turning Radius 2900mm Passengers 2 Person
Net. Weight 430kg Ground Clearance 124mm
