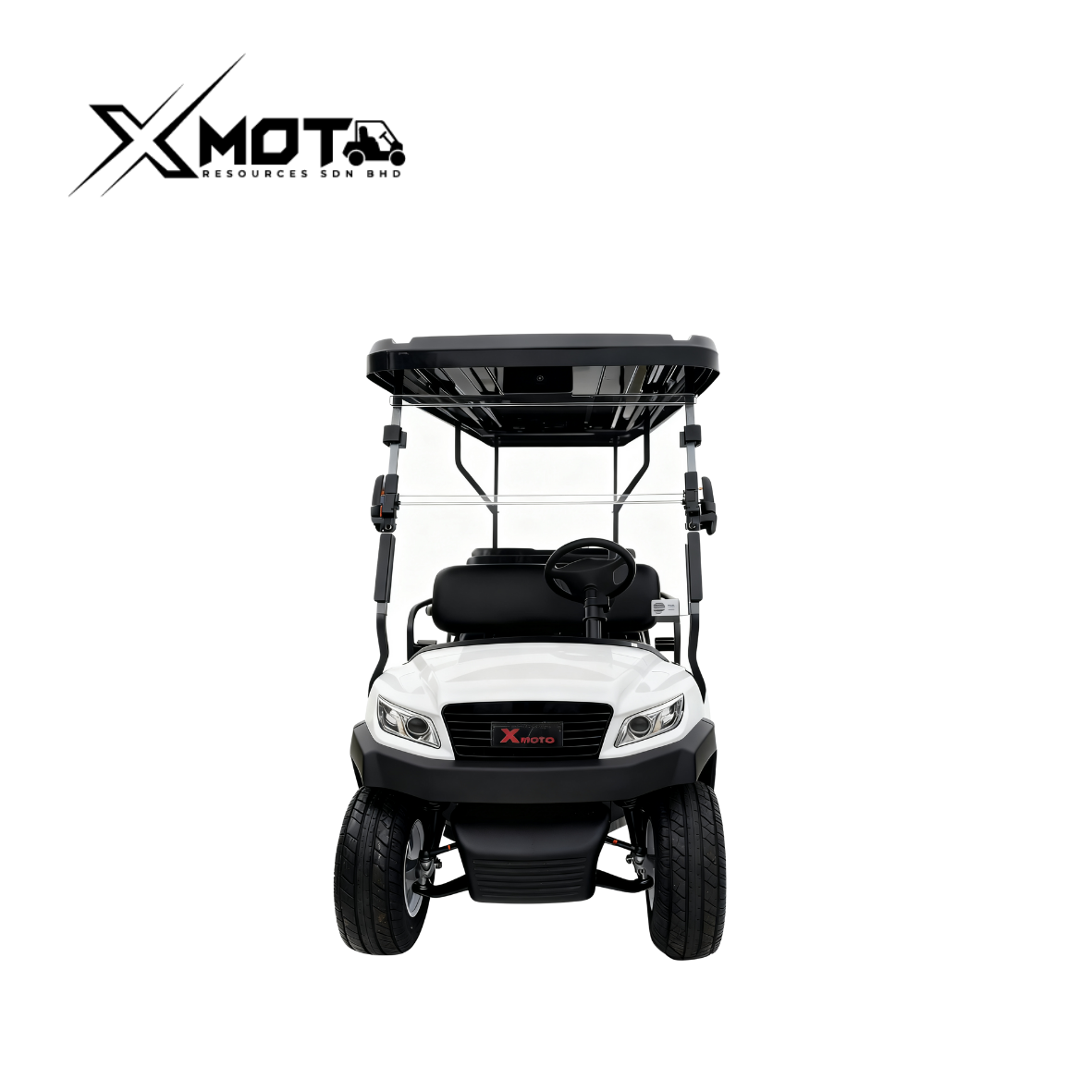

M1S2+2FF

SPECIFICATION
Dimension 3200 * 1200 * 2000 MM
F/R Track 860 / 970MM
Wheelbase 1670MM
Ground Clearance 150MM
Min. Turning Radius 2.9M
Net Weight 400KG
Pay Load 400KG
Climbing Capacity (FULL LOAD) 30%
Chassis Aluminium Chassis
Body Cover PP Engineering Plastic
Max. Forward Speed 35 KM/H
Range 80-100KM
CONFIGURATION
Motor ADC 48V 5KW Acim Motor
Controller Curtis Controller 48V 350A
Batteries T-875 6*8V
Charger 48V 20A Intelligent Onboard Charger
CHASSIS CONFIGURATION
Transaxle Italy Graziano Axle
Brake System Rear Self-adjusting drum brake
Steering System Dual Self-adjusting Rack & Pinion
F/R Suspension Mcpherson independent spring suspension
Tyre 12 inches
