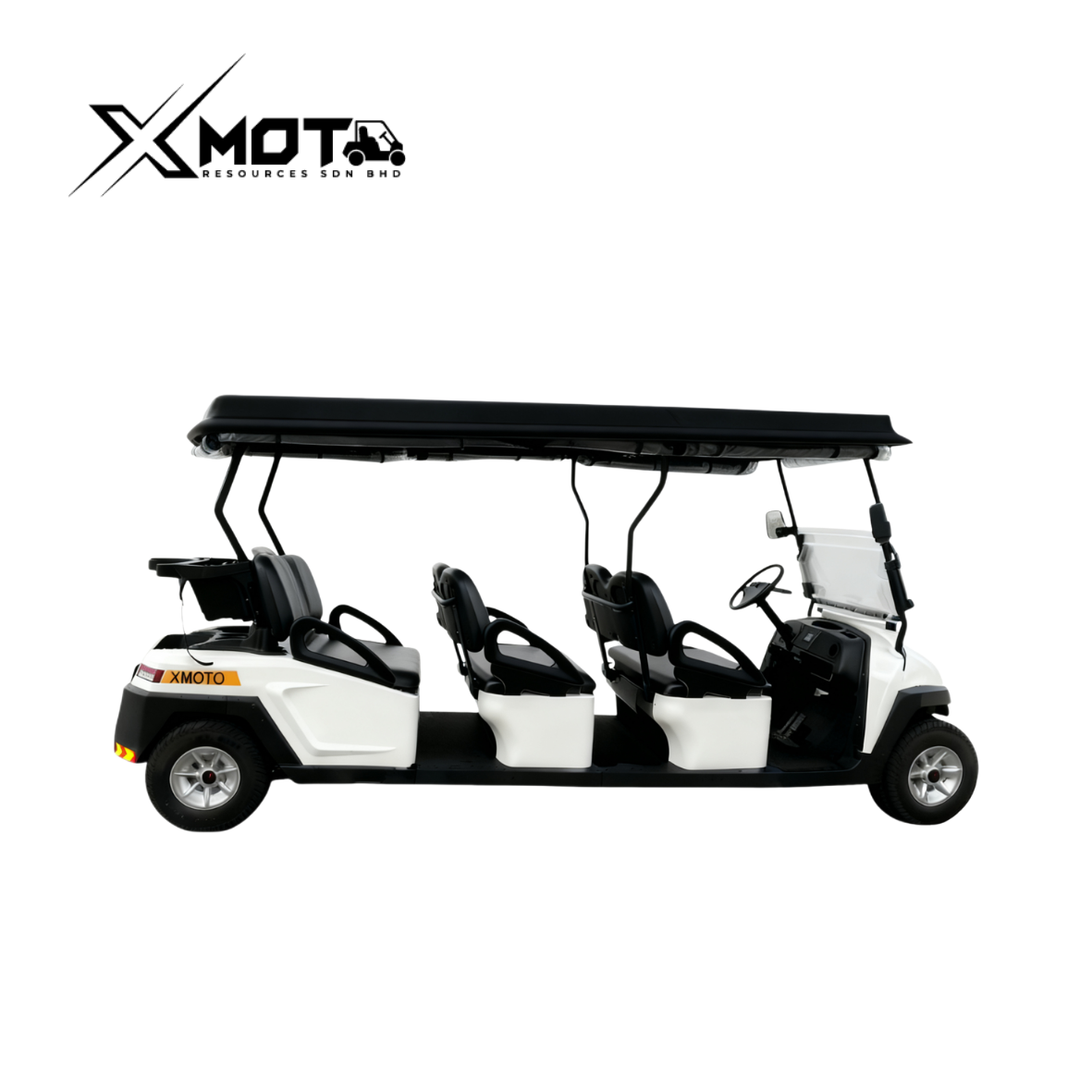

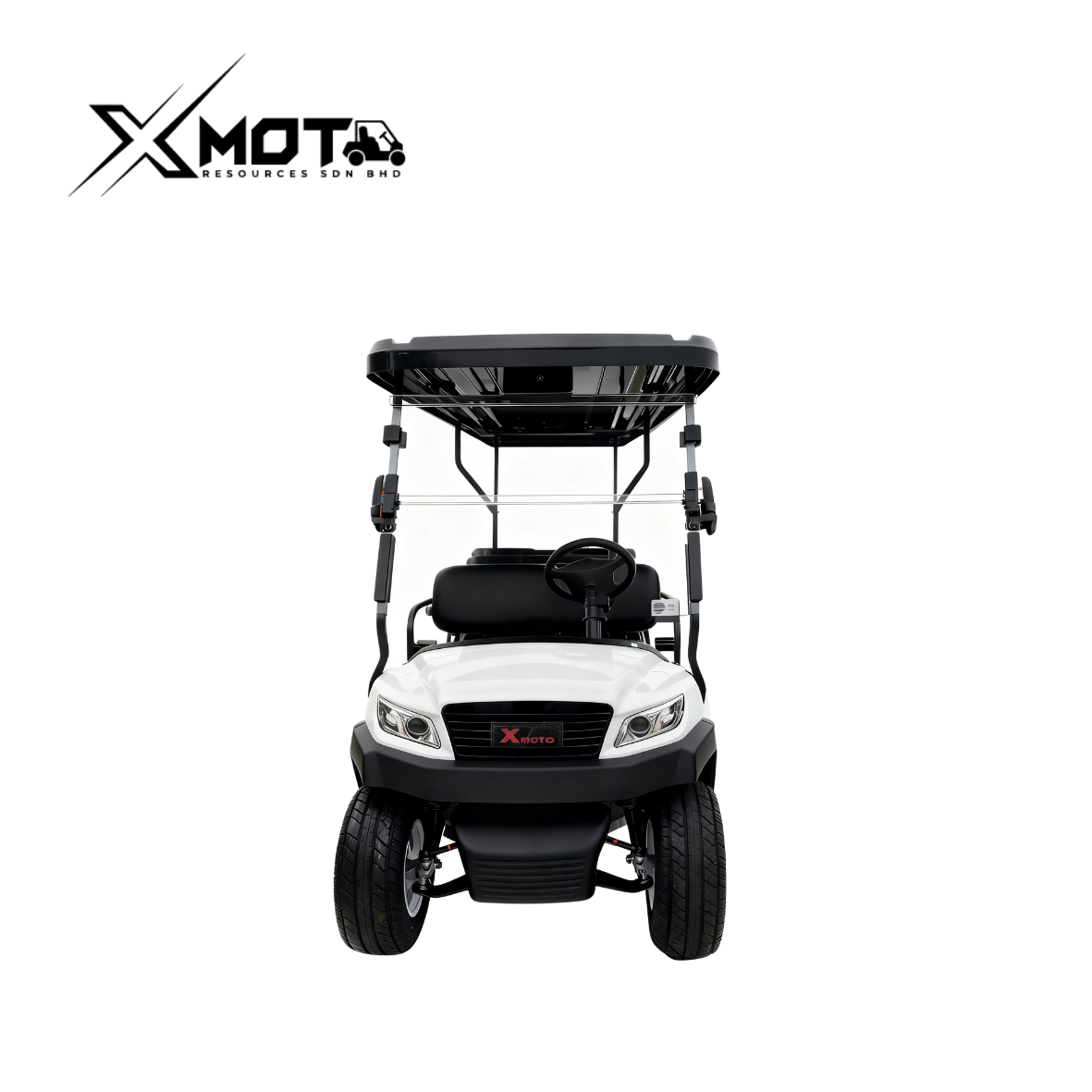

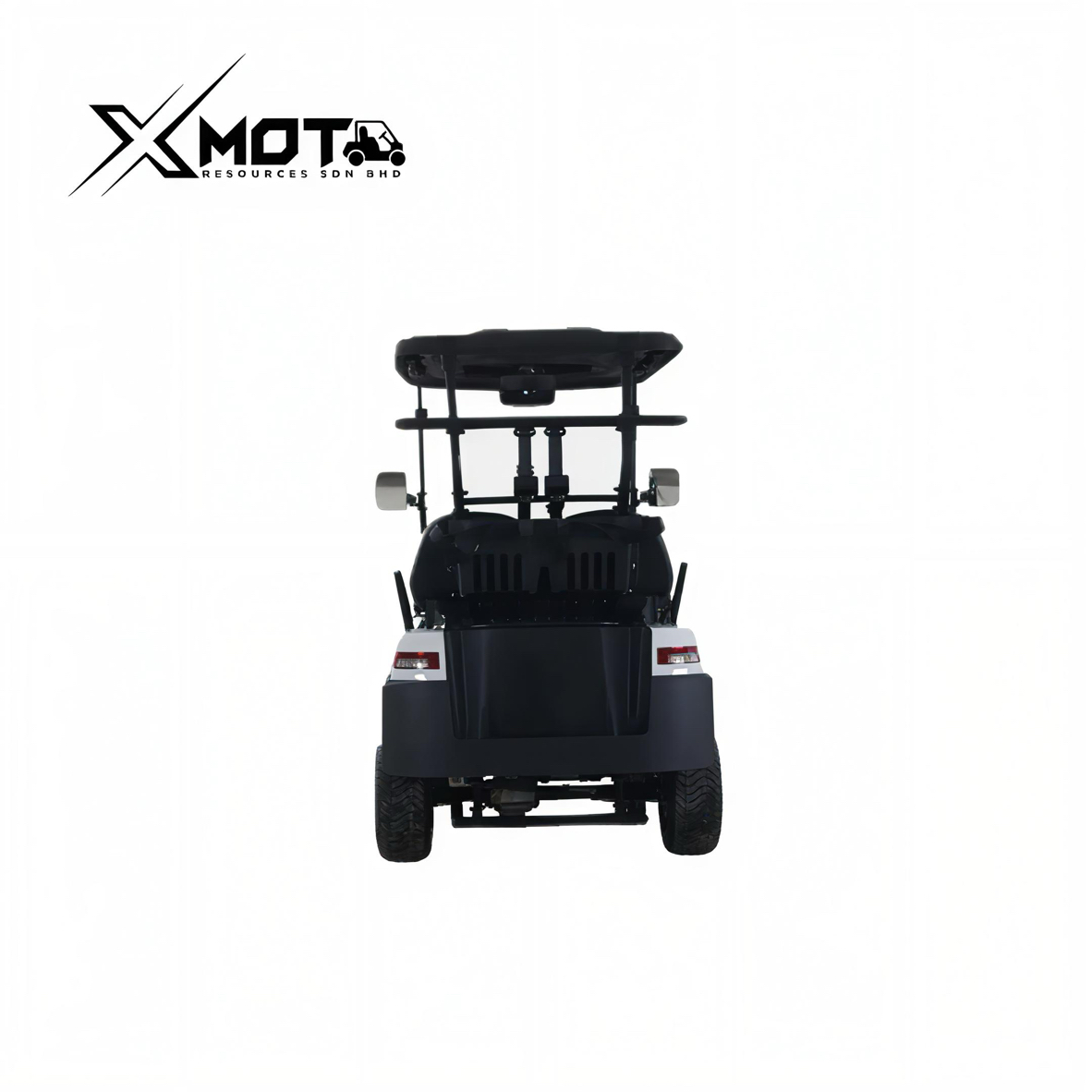

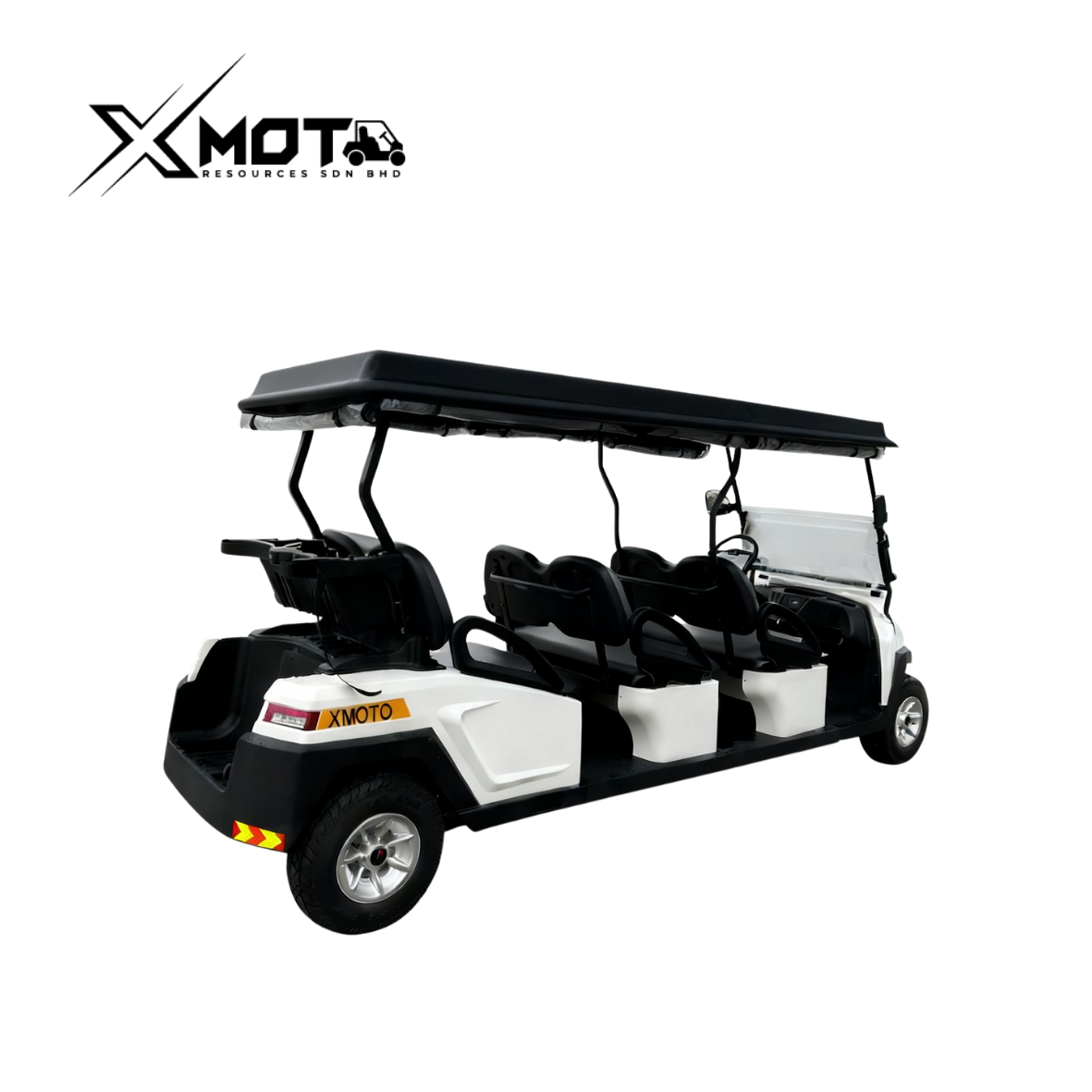

M1S6

SPECIFICATION
Dimension 4000 * 1200 * 1900 MM
F/R Track 860 / 970MM
Wheelbase 3300MM
Ground Clearance 114MM
Min. Turning Radius 5.1M
Net Weight 590KG
Pay Load 510KG
Climbing Capacity (FULL LOAD) 20%
Chassis Steel Chassis
Body Cover PP Engineering Plastic
Max. Forward Speed 24 KM/H
Range 50-70KM
CONFIGURATION
Motor ADC Separately Excited Motor 48V 3.7KW
Controller Curtis Controller 48V 350A
Batteries T-875 6*8V
Charger 48V 17A Regulator
CHASSIS CONFIGURATION
Transaxle Italy Graziano Axle
Brake System Rear Self-adjusting drum brake
Steering System Dual Self-adjusting Rack & Pinion
F/R Suspension Mcpherson independent spring suspension
Tyre 10 inches
